Dual Tank City Water FilterSoft MAX
Dual Tank City Water FilterSoft MAX
Dealer pricing
Pricing and online ordering are available to approved American Water Warehouse dealers.
Apply for Dealer AccessTwo tanks, maximum performance on city water.

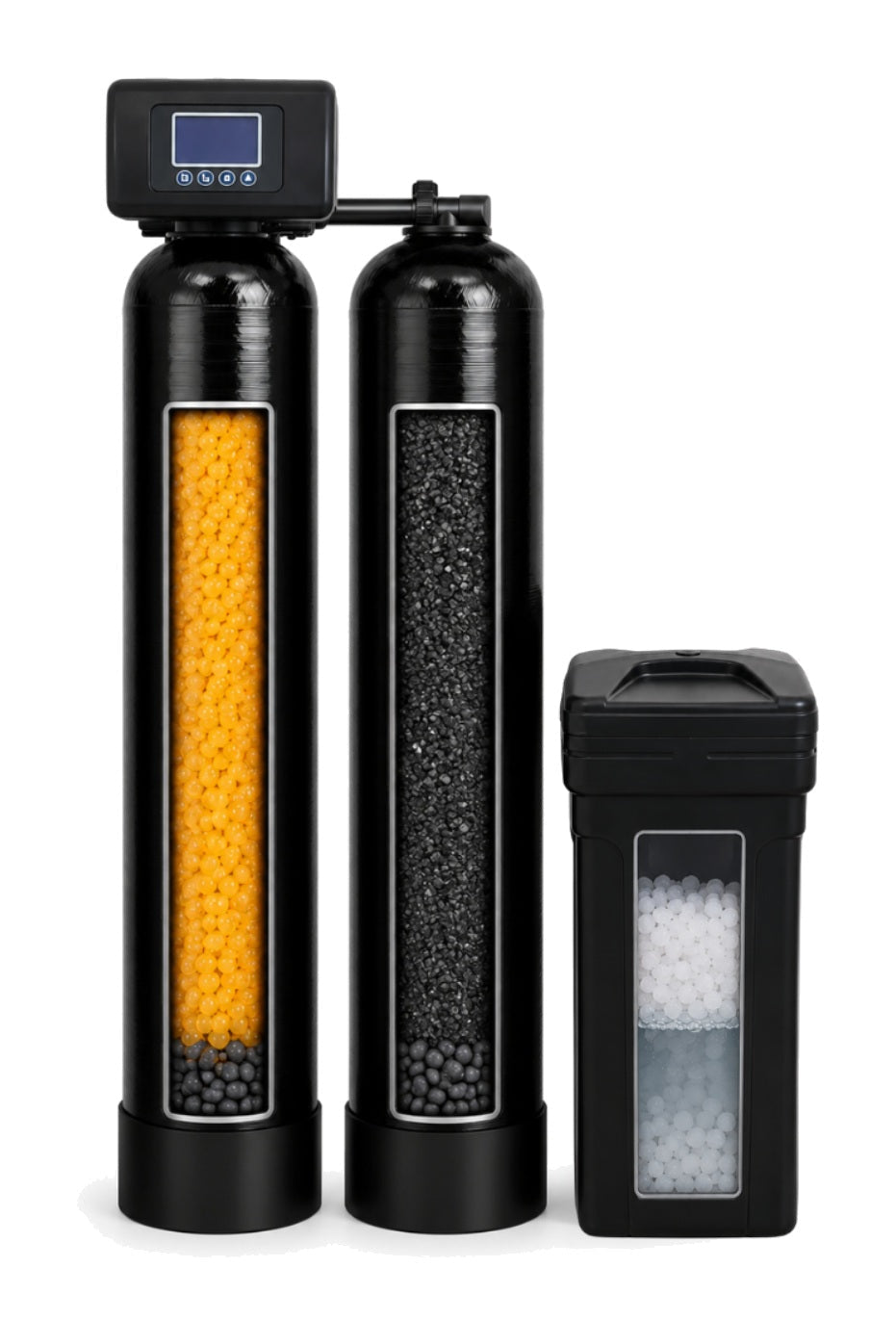

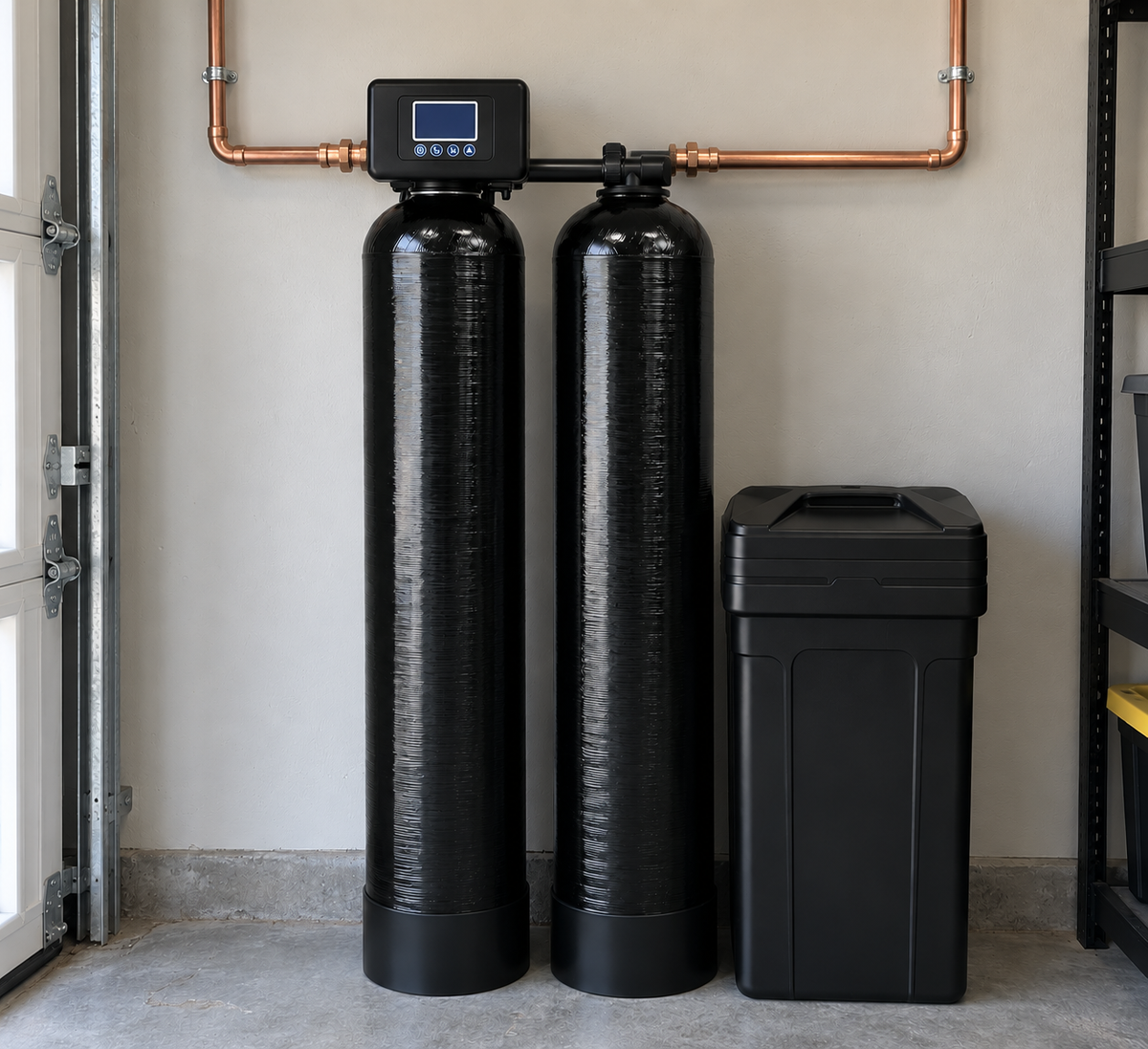

A dual-tank whole-home system — one tank of carbon filtration, one of CG10 softening resin. Separating the two jobs delivers higher performance and capacity than a single mixed-bed tank.
KEY FEATURES
- Dedicated carbon tank + dedicated softener tank
- Higher capacity than mixed-bed
- Top performance for demanding homes
- Available as an upgrade: Catalytic Carbon for chloramine & sulfur-odor control
VALVE FEATURES — AWW PROVALVE
- Ceramic discs for longer life and reduced maintenance
- Highly configurable with an easy-to-use program interface
- Long-term memory for program functions · 72-hour memory backup
- 1″–1¼″ bypass connection
TECHNICAL SPECIFICATIONS
PROFESSIONALLY ENGINEERED FOR PERFORMANCE
| Application | City / municipal water |
| Configuration | Dual tank (1 carbon / 1 softening resin) |
| Tank 1 — size | 10″ × 60″ |
| Tank 1 — media | Softening resin — CG10 Resin, 48,000 grain, 1.5 cu ft |
| Tank 2 — size | 10″ × 60″ |
| Tank 2 — media | Granular activated coconut shell carbon, 1.5 cu ft (substitutable for catalytic carbon — see upgrade) |
| Salt used per regeneration | 9 lbs per regeneration |
| Water used per regeneration | 45–60 gallons per regeneration |
| Salt storage capacity | 150 lbs |
| Brine tank dimensions | 15″L × 17″W × 36″H |
| Electrical requirements | 110 volts |
| Shipping weight | 95 lbs |
| With Extra Large upgrade — Grain capacity | 64,000 grain |
| With Extra Large upgrade — Resin volume | 2.0 cu ft |
| With Extra Large upgrade — Carbon volume | 1.5 cu ft |
| With Extra Large upgrade — Tank 1 & 2 size | 12″ × 58″ |
| With Catalytic Carbon upgrade | Tank 2 media becomes catalytic carbon for chloramine & sulfur-odor control |
| Targets | Hardness, chlorine, taste & odor, sediment |
QUICK LINKS — DOCUMENTS
🇺🇸 Assembled in Fort Worth, Texas
🛡 Dealer warranty support
🚚 Ships direct to you or your customer
💬 Questions? Talk to us
Not intended for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
